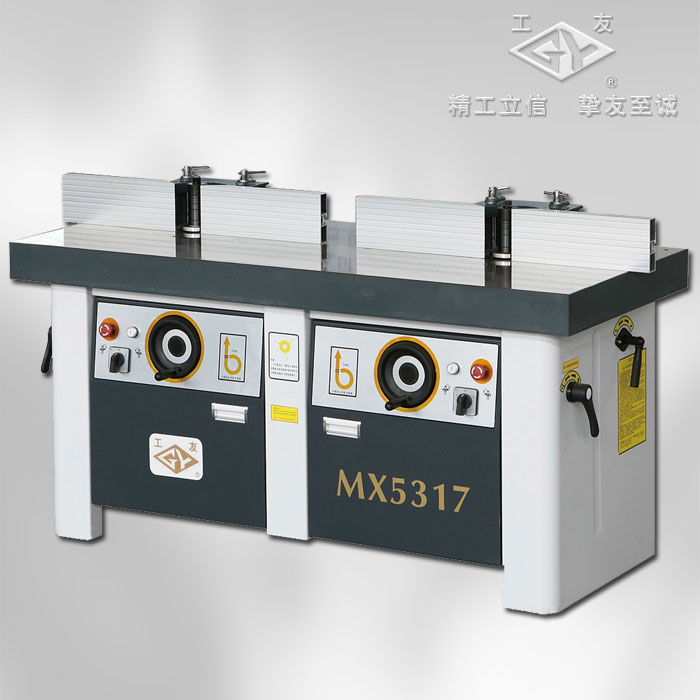

| Technical Specification | Unit | MX5317 |
| Main spindle speed | r/min | 10000/8000/6000 |
| Cutting circle diameter | mm | ?35(?40 optional) |
| Max. milling height | mm | 120 |
| Min. copy radius | mm | R45 |
| Table size | mm | 1630×690 |
| Working table hight | mm | 800 |
| Motor power | kW | 4×2(5.5×2 optional） |
| Overall dimensions | mm | 1630×690×994 |
| Net.weight | kg | 576 |
